Holdon –
reduce your signage and banners costs!
Mounting larger-than-life
signage has become easier
with Holdon, a clip-on.
Here’s more on these
wonder clips.
'Holdon’ is a clip that
perform equally well on
hemmed or on non
hemmed fabric for mounting.
This instant clip-on eyelet
eliminates the need for hems and
traditional eyelets. Holdon offers
the users a simple, fast and
effective means of creating fixing
points without the need for tools
or special skills – it is based on
the unbeatable ‘wedge’ principle,
hence ‘the heavier the load the
tighter the grip’.
This innovative product has made
things much easier for the sign
makers. It has many advantages,
which makes it an ideal choice for
mounting. These holdons fit in an
instant, without tools and
enhance the finished banner. It
has the potential to eliminate
hems and traditional eyelets.
Moreover, its great holding power
on most substrates provides total
control over positioning. It can be
reused also.
Holdons are gaining fast popularity
as they have better compatibility
with digital printing technique.
With traditional banner printing
methods, many banner makers use
blank banners with eyelets already
installed. When a change over is
made to digital printing, the
printing equipment cannot accept
banner fabric with eyelets. The
solution is to contract out the
traditional eyelet process, fit them
manually (or by an auto setting
machine). For such situations
Holdon provide an easy solution.
Fixing an eyelet actually weakens
the area where it’s installed. The
performance with traditional
eyelets on non-hemmed material
is generally unsatisfactory. And
these clips do not puncture the
fabric and the gripping area is
spread.
They show wonderful result on
large format banners where the
positioning and the number of
fixing points is particularly critical.
It can bear the load ranging from
minimum 45 kgs to maximum 100
kgs, this holding efficiency is tested
on 650/700 coated vinyl fabric.
Holdons are made from a nylon/
GRP polymer mix which gives
them great strength and plastic
memory. Provided the Holdon has
not been put through long term
repeated extreme stressing, one
can use them over and over again.
| Technical Specification |
| Dimensions (LxWxH in mm) |
Weight (gram) |
Max thickness of fabric (mm) |

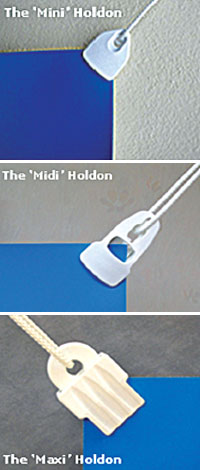

| Mini - 40 x 35 x 10 | 12.5 | 2 |
| Midi - 70 x 40 x 18.5 | 20.0 | 6 |
| Maxi - 75 x 38 x 18 | 35.0 | 3 |
Material specification
Produced in Sweden – from glass-fibre reinforced Nylon 6.
Holdon in white contains UV stabilizers. It in colours other than
white is protected from UV deterioration by pigment additives,
causing UV blocking with the highest protection in black.
Standard colours available
Mini – white, green, blue, black, green, red and yellow.
Midi – white, black and blue.
Maxi – white, green, blue, black, green, red and yellow.
Temperature range
Minus 30 degrees Celcius to +100 degrees Celcius.
Melting
temperature +220 degrees Celcius
Median loading capacity
Mini – 70 kgs
Midi – 100 kgs
Maxi – 110 kgs
|
