Give Your Creativity a Glow Up with Mimaki 330 Series

Mimaki 330 Series is a flagship model that combines Mimaki Engineering’s technological expertise accumulated over more than 20 years to deliver beautiful image quality, high productivity, and high value-added functions that assist in saving work.

606

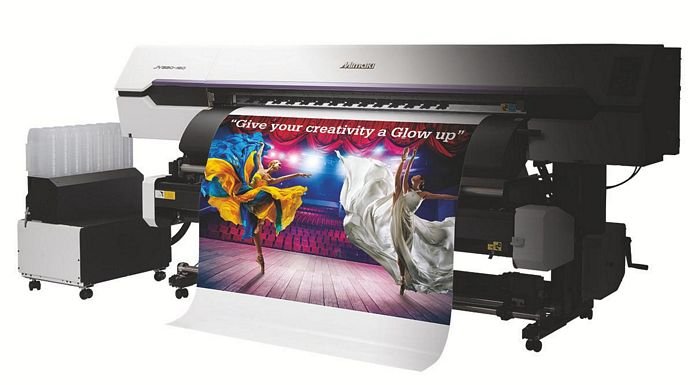

Mimaki CJV330 Series is a mid- to high-end eco-solvent inkjet printer (print & cut) that has been added to the company’s product line to meet the customer’s needs in addition to the entry-level Mimaki 150 Series and standard Mimaki 300 Series. In addition to its impressive image quality and high productivity, the high value-added functions of Mimaki CJV330 Series are mounted to assist customers in saving work and labour.

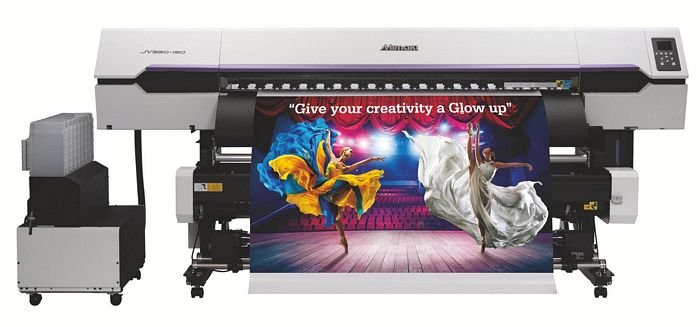

Further, Mimaki JV330 Series is yet another mid- to high-end eco-solvent inkjet printer in the company’s line up. The printer is designed to meet the customer’s requirements for impressive image quality and high productivity, in addition to entry-level Mimaki 100 Series and standard Mimaki 300 Series. Mimaki JV330 Series boasts high value-added functions, which are engineered to save work and labour in production facilities.

The newly launched flagship models of Mimaki JV330 and CJV330 are print & cut eco-solvent inkjet printers with a number of industry-first advanced design features.

A new drop technology

Mimaki Weaving Dot Technology, a new drop technology, suppresses an impact on printing caused by the individual difference of the printhead and misalignment in stagger adjustment and optimises the order of firing, thereby realising more accurate ink droplet placement. This makes it possible to reproduce deep colours vividly without unevenness and realises beautiful photo expressions.

Solution for quick delivery

Mimaki JV330 and CJV330 Series are solution for job requiring quick delivery with the high printing speed. The high productivity of 21.0 sq m/h in the case of the standard mode using 4 colours and 13.2 sq m/h in the case of the standard mode using 8 colours are suitable to accomplish print job requiring quick delivery. When outputting a 900 x 1800 mm sign (of PVC) using a high-speed mode of 30.0 sq m/h by 4 colours, the output of about 10 sheets/hr is possible.

Highly precise cutting technology

‘XY Slitter’ of Mimaki JV330 and CJV330 Series is capable of reducing post-process work by X-axis & Y-axis sheet-fed cutting. The working space for post-print slitting becomes unnecessary for space-saving and enables efficient cut work and accommodates work requiring quick delivery to expand the range of your work.

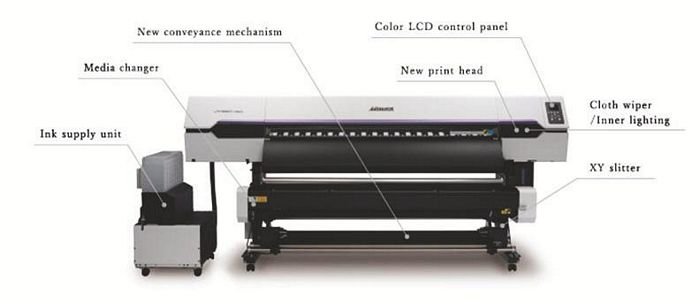

Evolution of usability

Media Changer in the printers to which maximum three rolls of media are attachable to enhance your work efficiency. Setting three rolls of media at a maximum significantly saves labour for media replacement. Multiple media are attachable, and it creates a space-saving and efficient work environment. Just lightly rotating a handle replaces the media, so anybody can use Mimaki JV330 and CJV330 Series easily.

V-shape cut function

By cutting the media into a V-shape with the new ‘V-shape cut function’, a single point can be enough to tape the media when winding it around the paper core. The center of media can be accurately attached to the paper core to reduce human error and avoid media conveyance misalignment. It can also save material by using a small part of the media and taping at one point. At the touch of a button of printer, it is to be chosen between two methods—V-shaped cut or conventional cut.

New maintenance mechanism

The new maintenance mechanism of Mimaki JV330 and CJV330 Series applies a cloth wiper that increases the removal rate of unwanted ink droplets from the nozzle surface. Compared with conventional scraping rubber wipers, the new wiping system soaks up unwanted ink droplets, reducing ink splattering on the head station. By reducing the frequency of maintenance around the head and cap, daily care becomes simple and the Mimaki CJV330 Series printers can always be maintained in optimal condition.

Reliable long hour print operation

New conveyance mechanism of Mimaki JV330 and CJV330 Series ensures reliable long hour print operation. The drive motor of the take-up unit is attached to both the left and right sides, which distributes the load on the paper tube and improves the take-up accuracy. Winding accuracy is improved. The take-up power has been improved and the mechanism has evolved to be less prone to meandering.

Wireless print operation

Mimaki JV330 and CJV330 Series feature Mimaki Remote Access (MRA) which enables wireless print operation. It enables PSPs to check the status of the machine remotely from a smart-phone or PC. As of now, MRA supports iPhone; Android to be supported later. This allows users to operate the unit and panel from a distance, making the work more efficient.
